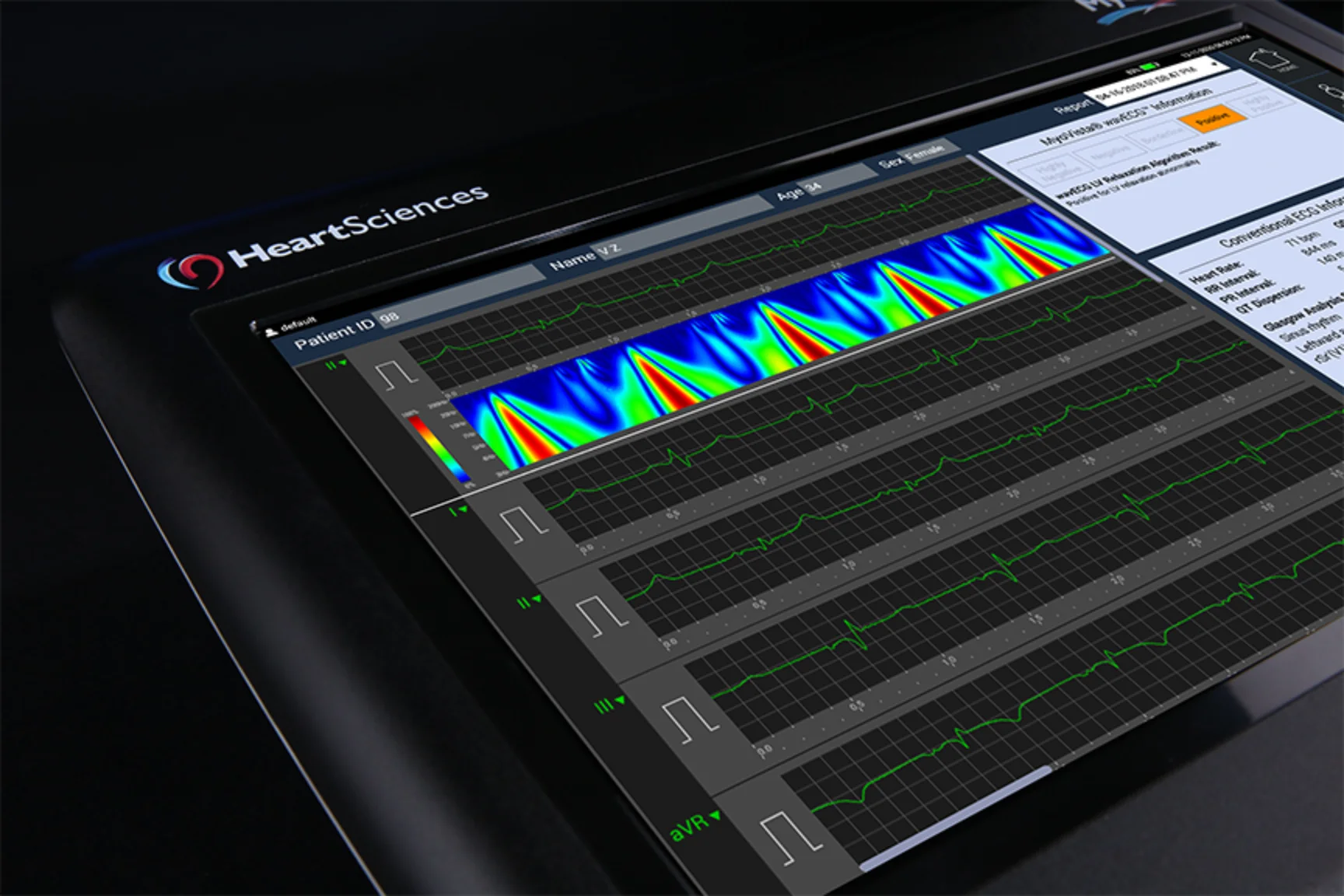

MyoVista® wavECG™ Device
A full-featured 12-lead resting ECG with built-in AI-ECG technology. Portable, intuitive, and software-upgradable for future algorithms.
AI-ECG at the Point of Care
The MyoVista® wavECG™ device brings advanced AI-ECG analysis directly to the clinical setting. Built on proprietary wavelet signal processing technology, it captures high-fidelity ECG signals and delivers AI-enabled insights at the bedside.
Designed for physicians, nurses, and technicians who need immediate, actionable cardiac information without workflow disruption.
Device Capabilities
Built for clinical environments with intuitive operation and advanced signal processing.
Wavelet Signal Processing
Proprietary wavelet technology captures subtle cardiac signals often missed by conventional ECG devices.
Built-In AI Analysis
AI-ECG algorithms run directly on the device for immediate results without network dependency.
Intuitive Interface
Large touch screen display with streamlined workflow designed for minimal training time.
Portable Design
Compact form factor with integrated carry handle for bedside, clinic, or mobile use.
Software Upgradable
Receive new algorithms and features through software updates without hardware replacement.
Glasgow Interpretation
Industry-standard Glasgow analysis included for comprehensive rhythm and morphology assessment.
Device Specifications
ECG Acquisition
- Leads
- 12-lead resting ECG
- Sample Rate
- 500 Hz / 1000 Hz
- Resolution
- 24-bit ADC
- Input Impedance
- >10 MΩ
Display & Interface
- Screen
- 10.1" touch display
- Connectivity
- WiFi, Ethernet, USB
- Storage
- 10,000+ ECG records
- Export
- PDF, XML
Physical
- Weight
- 4.5 kg (9.9 lbs)
- Dimensions
- 305 x 280 x 95 mm
- Battery
- 4+ hours operation
- Power
- 100-240V AC
Clearances & Certifications
CE Marked
Compliant with European Medical Device Regulation (MDR) requirements for clinical use.
IEC 60601-2-25
Meets international safety and performance standards for electrocardiographic equipment.
Glasgow Interpretation
MyoVista® wavECG™ includes the industry-standard Glasgow interpretive analysis, providing comprehensive rhythm and morphology interpretation alongside AI-ECG insights.
Connected Ecosystem
MyoVista® wavECG™ integrates seamlessly with the MyoVista® Insights™ Cloud Platform for enhanced capabilities.
MyoVista® Insights™ Cloud
Upload ECGs directly to the cloud platform for additional algorithm analysis and enhanced ECG management.
EHR Integration
Connect to electronic health records via HL7, FHIR, or direct integration for seamless clinical workflows.
Report Generation
Print comprehensive reports locally or export to PACS/VNA systems in standard formats.
Network Connectivity
WiFi and Ethernet connectivity for cloud sync, software updates, and remote device management.
Software Upgradable
MyoVista® wavECG™ is designed for continuous improvement. New AI-ECG algorithms and features are delivered through software updates, ensuring your device stays current without hardware replacement.
